Overview

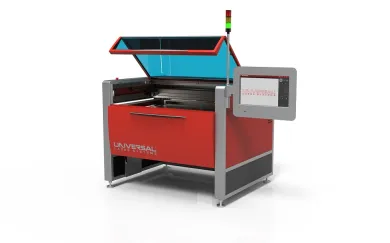

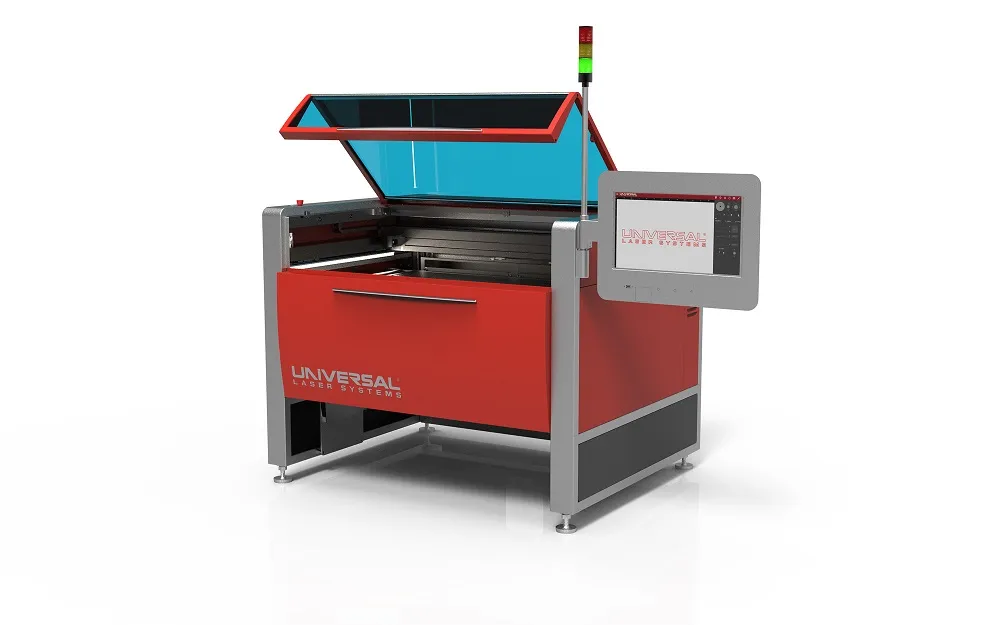

The ULTRA X6000 platform has a materials processing envelope of 36 x 24 in (914 x 610), with support for materials with a thickness up to 12 in (305 mm).

Configure the customizable ULTRA X6000 platform with up to three laser sources consisting of two interchangeable CO2 lasers and one fiber laser. When the platform is configured with three lasers, users can take full advantage of MultiWave Hybrid technology™ enabling up to three wavelengths – 9.3 µm, 10.6 µm, and 1.06 µm – to be simultaneously combined into a single coaxial beam. Each spectral component of the beam is independently controlled and can be modulated in real time.

Major features include multiple laser support, rapid high-accuracy laser beam positioning, precision material-independent autofocus, controllable laser power density, an automation interface, camera registration, an integrated touch screen control panel, over temperature detection, and support for fire suppression.

Description

The ULTRA X6000 platform offers laser material processing for the widest possible range of materials. It is designed and ideally suited for precision material processing in manufacturing, research and development, academic research, and prototyping environments. With its unique modular architecture, customizable solutions can be easily reconfigured with a wide array of options for enhancing performance, capability, and safety to complete the perfect solution to meet present and future business needs.
